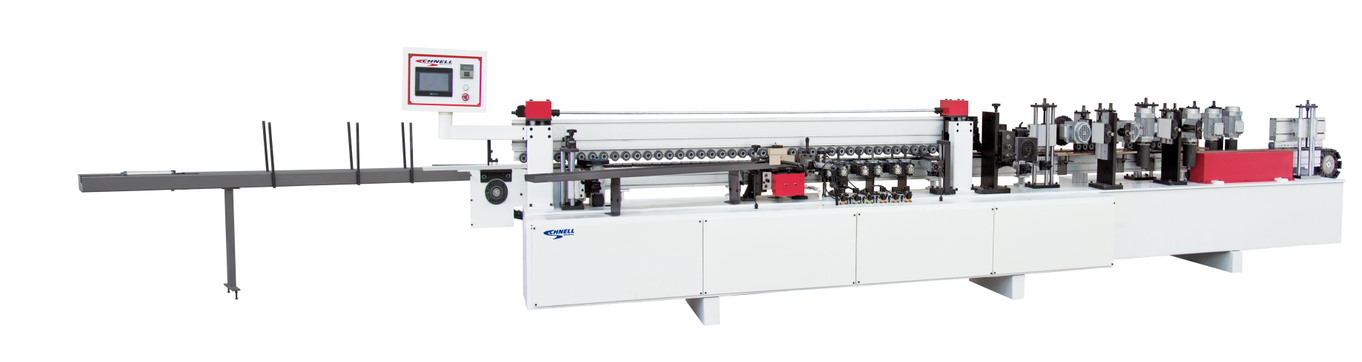

The Milling Door Line Edge Banding Machine(6 Milling)
- The Milling Door Line
- Shape can be choosed
Product DetailsVideo ShowInquiry
Features
---------------------------------------------------------------------------------------
Main Functions: T-shaped Notching, Gluing, Edge Banding,Pneumatic System, Thread Milling(1), Thread Milling(2), Thread Milling(3), Thread Milling(4), Thread Milling(5), Thread Milling(6)

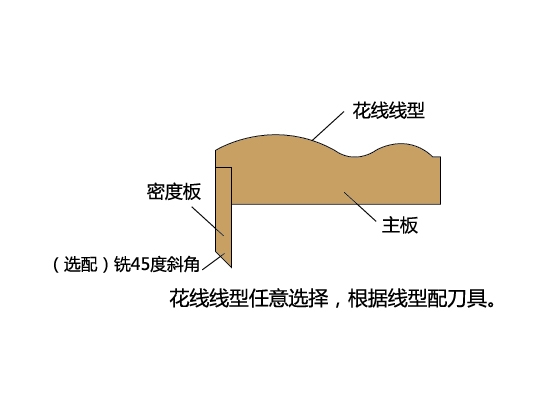

The Milling Door Line Edge Banding Machine, shaped could be choosed.
●Equipped with the counting device, it makes the machine adjustment and debugging more unified and simple by the numberable scale, a mass of adjustment time can be saved.
Specifications
---------------------------------------------------------------------------------------
---------------------------------------------------------------------------------------
Main Functions: T-shaped Notching, Gluing, Edge Banding,Pneumatic System, Thread Milling(1), Thread Milling(2), Thread Milling(3), Thread Milling(4), Thread Milling(5), Thread Milling(6)
The Milling Door Line Edge Banding Machine, shaped could be choosed.
●Equipped with the counting device, it makes the machine adjustment and debugging more unified and simple by the numberable scale, a mass of adjustment time can be saved.
Specifications
---------------------------------------------------------------------------------------
|
No.
|
Technical Specification
|
The Milling Door Line Edge Banding Machine(6)
|
|
1
|
Thickness of Edge
|
3-15mm
|
|
2
|
Width of Edge
|
8-40mm
|
|
3
|
Thickness of Panel
|
6-20mm
|
|
4
|
Min. Width of Panel
|
80mm
|
|
5
|
Panel Feeding Speed
|
8-20m/min
|
|
6
|
Total Power
|
24.5kw
|
|
7
|
Air Pressure
|
6kg
|
|
8
|
Machine Size
|
7100*900*1460mm
|
|
9
|
Net Weight
|
2300kg
|
