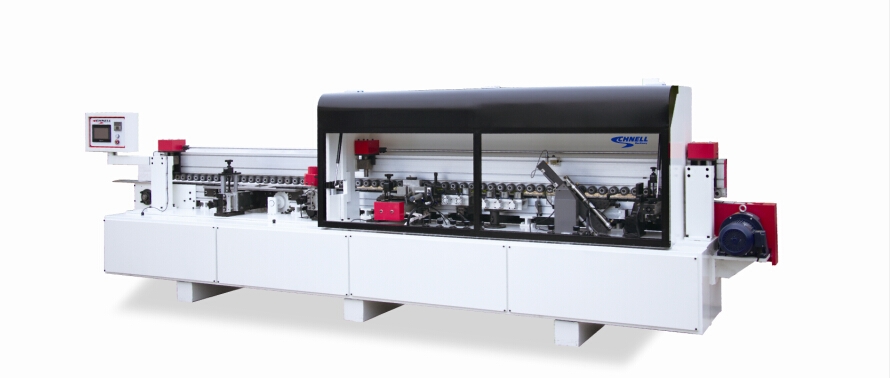

Double R-shaped Door line Edge Banding Machine
- Double R-shaped Door
- Double R-shaped
Product DetailsVideo ShowInquiry
Features
---------------------------------------------------------------------------------------
Main Functions: Pre-milling, T-shaped Grooving, Edging, End Cutting, Pre-milling

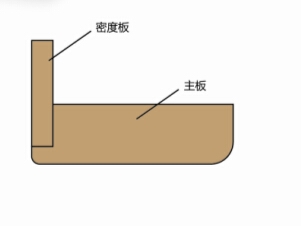

Small R-shaped with 2.2kw high frequency motor repaire, which line facet R arc, arc size could be adjustable.
Edge trimming unit to trim the exceeding edge on the top and the bottom side of the panel. It's complete with two motors and copying.
●Equipped with the counting device, it makes the machine adjustment and debugging more unified and simple by the numberable scale, a mass of adjustment time can be saved.
Specifications
---------------------------------------------------------------------------------------
---------------------------------------------------------------------------------------
Main Functions: Pre-milling, T-shaped Grooving, Edging, End Cutting, Pre-milling
Small R-shaped with 2.2kw high frequency motor repaire, which line facet R arc, arc size could be adjustable.
Edge trimming unit to trim the exceeding edge on the top and the bottom side of the panel. It's complete with two motors and copying.
●Equipped with the counting device, it makes the machine adjustment and debugging more unified and simple by the numberable scale, a mass of adjustment time can be saved.
Specifications
---------------------------------------------------------------------------------------
|
No.
|
Technical Specification
|
Double R-shaped Door line Edge Banding Machine
|
|
1
|
Thickness of Edge
|
3-15mm
|
|
2
|
Width of Edge
|
8-40mm
|
|
3
|
Thickness of Panel
|
6-20mm
|
|
4
|
Min. Width of Panel
|
80mm
|
|
5
|
Panel Feeding Speed
|
8-20m/min
|
|
6
|
Total Power
|
8.2kw
|
|
7
|
Air Pressure
|
6kg
|
|
8
|
Machine Size
|
5300*700*1520mm
|
|
9
|
Net Weight
|
1500kg
|
