Edge Banding with Thermal transfer Machine
- Edge Banding with The
- PLC Touch Screen
- Pre-Milling Unit
- Gluing Unit
- End Cutting Unit
- Rough & Fine Trimming
- Scraping Unit
- Buffing Unit
- Heat-transfer Unit
Product DetailsVideo ShowInquiry
Features
---------------------------------------------------------------------------------------
Main Functions: Pre-Milling, Gluing, Edge Banding, End Cutting, Rough Trimming, Fine Trimming, Scraping, Heat-transfer pringting, Heat-transfer printing

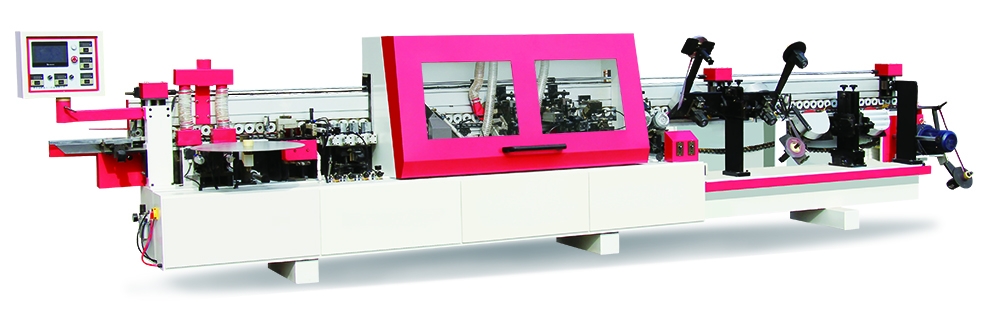

Edge Banding with Thermal transfer Machine is an automatic edge banding machine with full functions, using advanced mechanical structure, which makes the machine have more stable performance and more convenient operation.

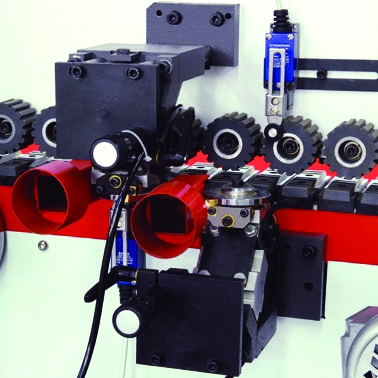

●Pre-milling unit equipped with two high frequency motors and two milling cutters, ensures better preparation for panel edge gluing and banding by eliminating its faults caused by panel saw, and making it smooth and even.

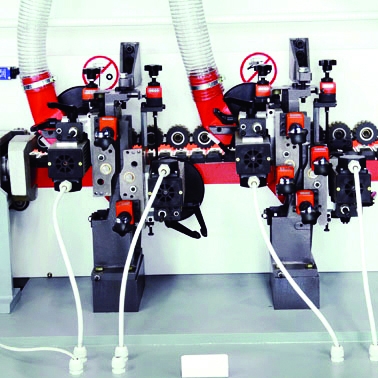

●Rough trimming and Fine trimming unit, with two pairs of individual high frequency motors, trim the exceeding edge on both top and bottom sides of the panel, to make smooth arc shape.
●Equipped with the counting device, it makes the machine adjustment and debugging more unified and simple by the numberable scale, a mass of adjustment time can be saved.
●Scraping unit, remove corrugation trail on the edges caused by trimming, make both sides of the panel smooth and tidy. With air blow function, it can prevent removed edge tapes from trapping on polishing wheels.

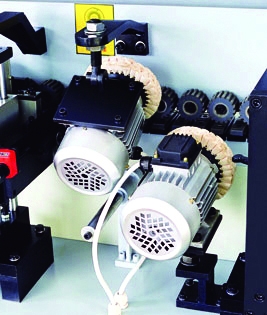

●Buffing unit is for cleaning of the edge, it's constituted by two independent motors and two cotton polishing wheels.
●The two sets parallel wheels work on the two Heat-transfer printing separately, which four wheels could provide the perfect effect of Heat-transfer printing.
Specifications
---------------------------------------------------------------------------------------
---------------------------------------------------------------------------------------
Main Functions: Pre-Milling, Gluing, Edge Banding, End Cutting, Rough Trimming, Fine Trimming, Scraping, Heat-transfer pringting, Heat-transfer printing
Edge Banding with Thermal transfer Machine is an automatic edge banding machine with full functions, using advanced mechanical structure, which makes the machine have more stable performance and more convenient operation.
●Pre-milling unit equipped with two high frequency motors and two milling cutters, ensures better preparation for panel edge gluing and banding by eliminating its faults caused by panel saw, and making it smooth and even.
●Rough trimming and Fine trimming unit, with two pairs of individual high frequency motors, trim the exceeding edge on both top and bottom sides of the panel, to make smooth arc shape.
●Equipped with the counting device, it makes the machine adjustment and debugging more unified and simple by the numberable scale, a mass of adjustment time can be saved.
●Scraping unit, remove corrugation trail on the edges caused by trimming, make both sides of the panel smooth and tidy. With air blow function, it can prevent removed edge tapes from trapping on polishing wheels.
●Buffing unit is for cleaning of the edge, it's constituted by two independent motors and two cotton polishing wheels.
●The two sets parallel wheels work on the two Heat-transfer printing separately, which four wheels could provide the perfect effect of Heat-transfer printing.
Specifications
---------------------------------------------------------------------------------------
|
No.
|
Technical Specification
|
Edge Banding with Thermal transfer Machine
|
|
1
|
Thickness of Edge
|
0.4-3mm
|
|
2
|
Width of Edge
|
10-60mm
|
|
3
|
Thickness of Panel
|
10-55mm
|
|
4
|
Min. Width of Panel
|
80mm
|
|
5
|
Panel Feeding Speed
|
6-14.6m/min
|
|
6
|
Total Power
|
19.21kw
|
|
7
|
Air Pressure
|
6kg
|
|
8
|
Machine Size
|
7100*700*1600mm
|
|
9
|
Net Weight
|
2000kg
|
