Double PVC Door line Edge Banding Machine
- Double PVC Door line
- T-shaped Notching
- Gluing Unit

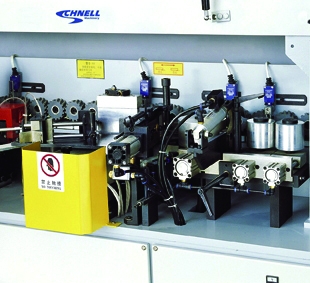

- Pneumatic System
- End Cutting Unit

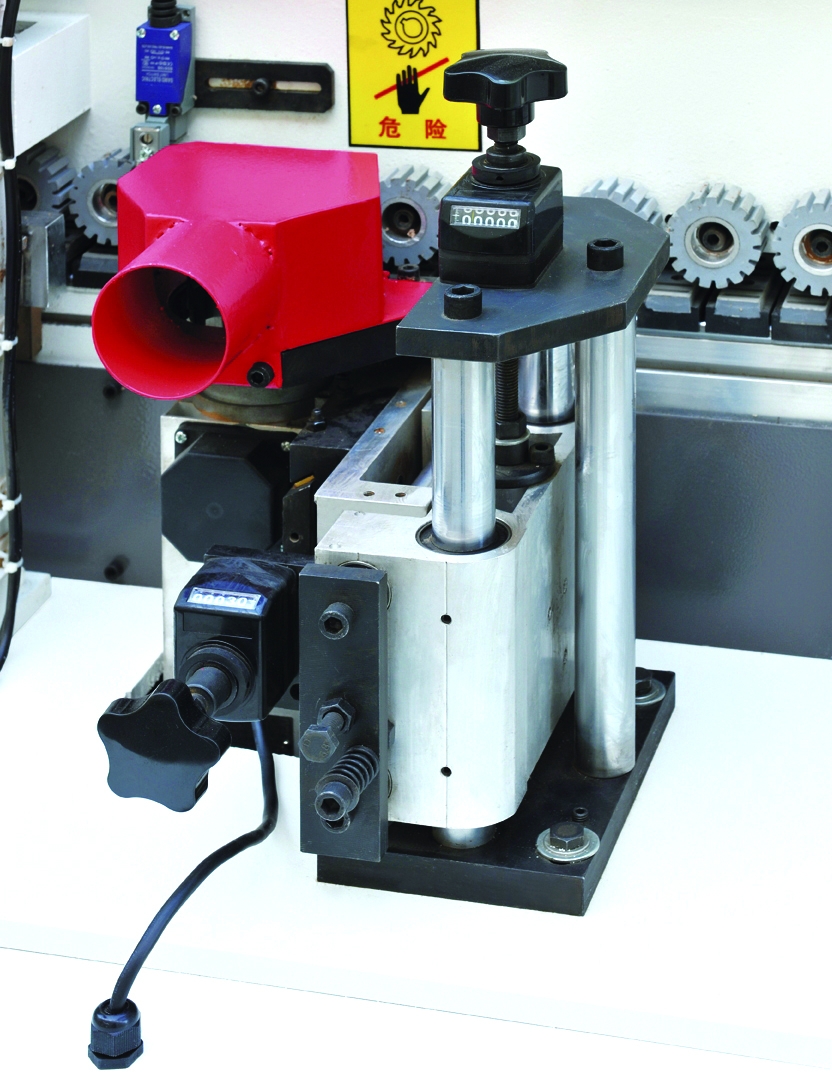

- Fine Trimming Unit
- Buffing Unit
Product DetailsVideo ShowInquiry
Features
---------------------------------------------------------------------------------------
Main Functions: Grooving, Gluing, Edge Banding, Pneumatic System, End Cutting, Fine Trimming, Grooving, Gluing, Edge Banding, Pneumatic System, Gluing, Edge Banding, Pneumatic System, End Cutting, Fine Trimming, Buffing

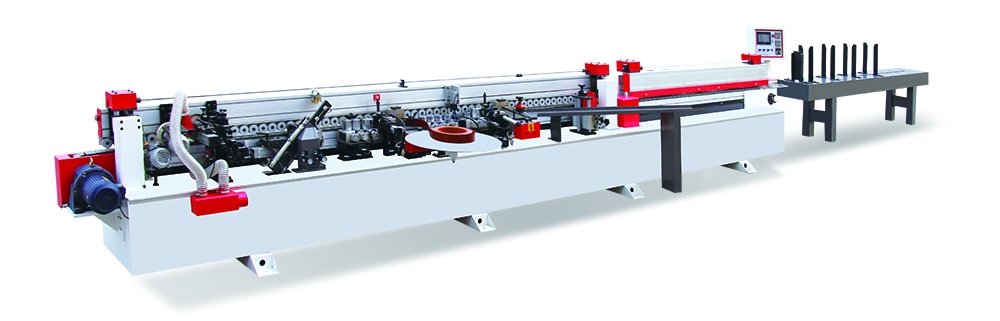

Double PVC Door line Edge Banding Machine is an automatic edge banding machine with complete functions, using advanced mechanical structure, which makes the machine have more stable performance and more convenient operation.
●With high-vivid PLC touch screen for the display of machine control, it is easier and clearer for production operation.

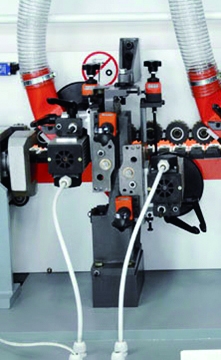

●End cutting unit with two independent motors, for cutting the exceeding edge on the front and rear side of the panel.
●Equipped with the counting device, it makes the machine adjustment and debugging more unified and simple by the numberable scale, a mass of adjustment time can be saved.

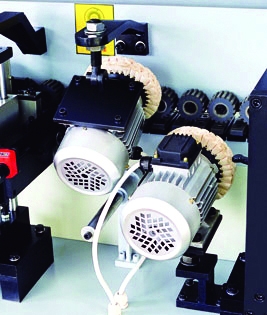

●Buffing unit is for cleaning of the edge, it's constituted by two independent motors and two cotton polishing wheels.
Specifications
---------------------------------------------------------------------------------------
---------------------------------------------------------------------------------------
Main Functions: Grooving, Gluing, Edge Banding, Pneumatic System, End Cutting, Fine Trimming, Grooving, Gluing, Edge Banding, Pneumatic System, Gluing, Edge Banding, Pneumatic System, End Cutting, Fine Trimming, Buffing
Double PVC Door line Edge Banding Machine is an automatic edge banding machine with complete functions, using advanced mechanical structure, which makes the machine have more stable performance and more convenient operation.
●With high-vivid PLC touch screen for the display of machine control, it is easier and clearer for production operation.
●End cutting unit with two independent motors, for cutting the exceeding edge on the front and rear side of the panel.
●Equipped with the counting device, it makes the machine adjustment and debugging more unified and simple by the numberable scale, a mass of adjustment time can be saved.
●Buffing unit is for cleaning of the edge, it's constituted by two independent motors and two cotton polishing wheels.
Specifications
---------------------------------------------------------------------------------------
|
No.
|
Technical Specification
|
Double PVC Door line Edge Banding Machine
|
|
1
|
Thickness of Edge
|
0.4-6mm
|
|
2
|
Width of Edge
|
10-60mm
|
|
3
|
Thickness of Panel
|
10-55mm
|
|
4
|
Min. Width of Panel
|
80mm
|
|
5
|
Panel Feeding Speed
|
12-18m/min
|
|
6
|
Total Power
|
14.75kw
|
|
7
|
Air Pressure
|
6kg
|
|
8
|
Machine Size
|
8000*1000*1400mm
|
|
9
|
Net Weight
|
2000kg
|
