Schnell 468
- Schnell 468
- PLC Touch Screen
- Gluing Unit
- End Cutting Unit

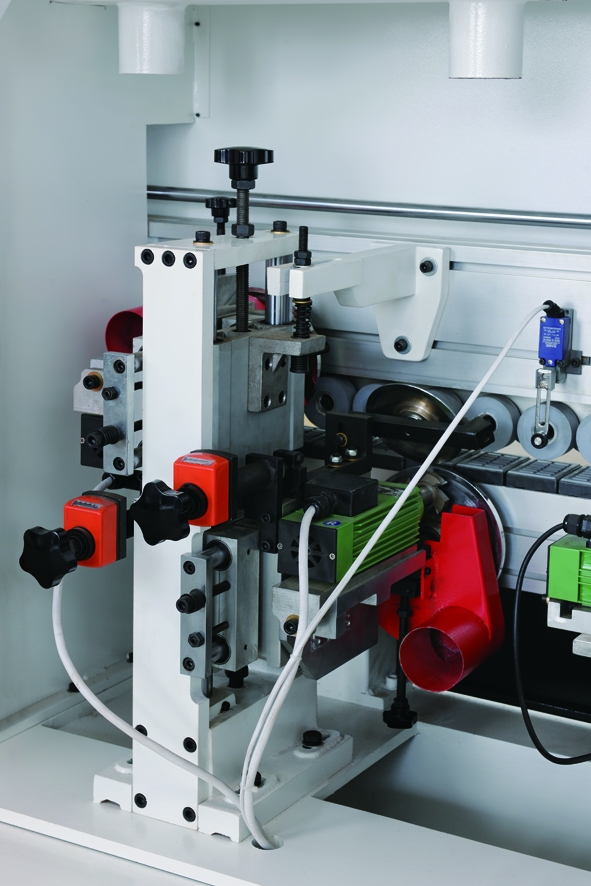

- Rough Trimming Unit
- Fine Trimming Unit
- Copying Tracing Unit
- Scraping Unit
- Buffing Unit
Product DetailsVideo ShowInquiry
Features
---------------------------------------------------------------------------------------
Main Functions: Gluing, Edge Banding, End Cutting, Rough Trimming, Fine Trimming, Copying Tracing, Scraping, Buffing
Schnell 468 is an automatic edge banding machine with complete functions, using advanced mechanical structure, which makes the machine have more stable performance and more convenient operation. With Copying Tracing, it can produce round corner edge banding easily and perfectly.
●With high-vivid PLC touch screen for the display of machine control, it is easier and clearer for production operation.
●End cutting unit with two independent motors, for cutting the exceeding edge on the front and rear side of the panel.
●Rough trimming and Fine trimming unit, with two pairs of individual high frequency motors, trim the exceeding edge on both top and bottom sides of the panel, to make smooth arc shape.
●With unique round Copying Tracing contour trimming unit, it can process the round edge corner more smooth and perfect.
●Equipped with the counting device, it makes the machine adjustment and debugging more unified and simple by the numberable scale, a mass of adjustment time can be saved.
●Scraping unit, remove corrugation trail on the edges caused by trimming, make both sides of the panel smooth and tidy. With air blow function, it can prevent removed edge tapes from trapping on polishing wheels.

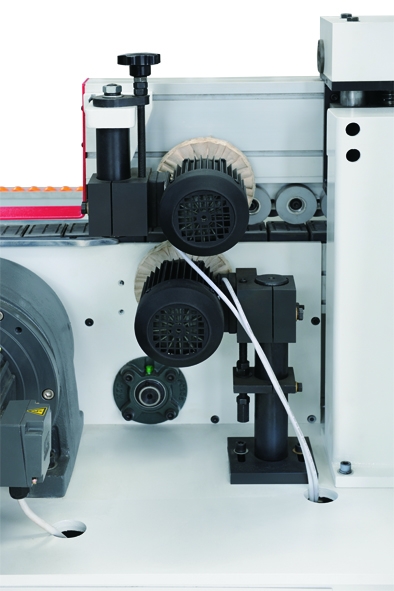

●Buffing unit is for cleaning of the edge, it's constituted by two independent motors and two cotton polishing wheels.
Specifications
---------------------------------------------------------------------------------------
---------------------------------------------------------------------------------------
Main Functions: Gluing, Edge Banding, End Cutting, Rough Trimming, Fine Trimming, Copying Tracing, Scraping, Buffing
Schnell 468 is an automatic edge banding machine with complete functions, using advanced mechanical structure, which makes the machine have more stable performance and more convenient operation. With Copying Tracing, it can produce round corner edge banding easily and perfectly.
●With high-vivid PLC touch screen for the display of machine control, it is easier and clearer for production operation.
●End cutting unit with two independent motors, for cutting the exceeding edge on the front and rear side of the panel.
●Rough trimming and Fine trimming unit, with two pairs of individual high frequency motors, trim the exceeding edge on both top and bottom sides of the panel, to make smooth arc shape.
●With unique round Copying Tracing contour trimming unit, it can process the round edge corner more smooth and perfect.
●Equipped with the counting device, it makes the machine adjustment and debugging more unified and simple by the numberable scale, a mass of adjustment time can be saved.
●Scraping unit, remove corrugation trail on the edges caused by trimming, make both sides of the panel smooth and tidy. With air blow function, it can prevent removed edge tapes from trapping on polishing wheels.
●Buffing unit is for cleaning of the edge, it's constituted by two independent motors and two cotton polishing wheels.
Specifications
---------------------------------------------------------------------------------------
|
No.
|
Technical Specification
|
Schnell 468
|
|
1
|
Thickness of Edge
|
0.4-3.0mm
|
|
2
|
Width of Edge
|
10-60mm
|
|
3
|
Thickness of Panel
|
10-55mm
|
|
4
|
Min. Width of Panel
|
80mm
|
|
5
|
Min. Length of Panel
|
160mm (Copying Tracing is 400mm)
|
|
6
|
Panel Feeding Speed
|
12-20m/min
|
|
7
|
Total Power
|
10.84kw
|
|
8
|
Air Pressure
|
0.6Mpa
|
|
9
|
Machine Size
|
5130*1100*1600mm
|
|
10
|
Net Weight
|
1800kg
|
