Armored Door Edge Banding Machine
- Armored Door Edge Ban
- Pre-Milling Unit
- Gluing Unit
- End Cutting Unit
- Rough Trimming Unit
- Fine Trimming Unit
- Buffing Unit
- PLC Touch Screen
Product DetailsVideo ShowInquiry
Features
---------------------------------------------------------------------------------------
Main Functions: Pre-Milling, Gluing, Edge Banding, End Cutting, Rough Trimming, Fine Trimming, Buffing
Armored Door Edge Banding Machine is an automatic edge banding machine with full functions, using advanced mechanical structure, which makes the machine have more stable performance and more convenient operation. With special structure, it can produce Armored Doors edge banding easily and perfectly.
●With high-vivid PLC touch screen for the display of machine control, it is easier and clearer for production operation.
●Pre-milling unit equipped with two high frequency motors and two milling cutters, ensures better preparation for panel edge gluing and banding by eliminating its faults caused by panel saw, and making it smooth and even.
●End cutting unit with two independent motors, for cutting the exceeding edge on the front and rear side of the panel.

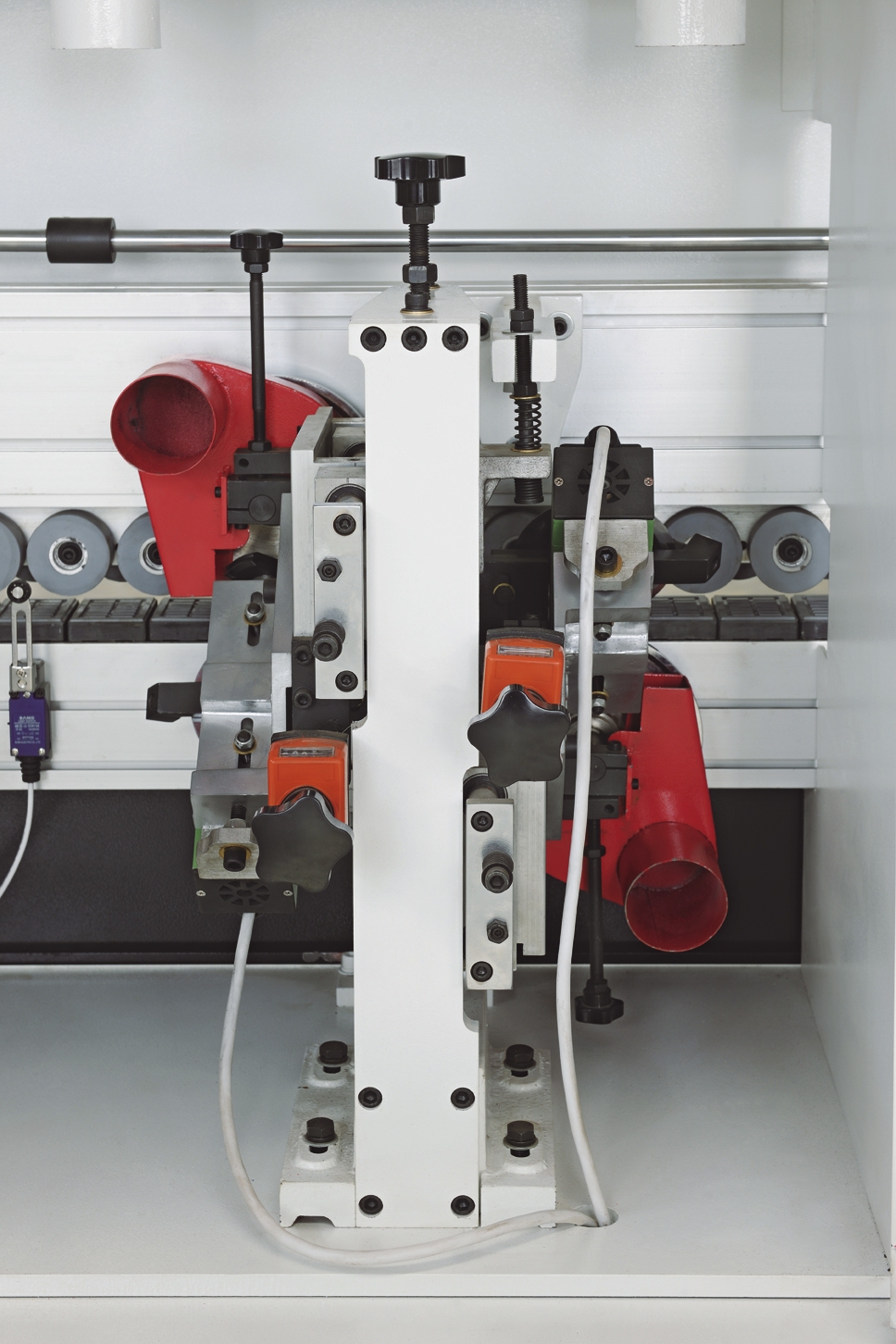

●Rough trimming and Fine trimming unit, with two pairs of individual high frequency motors, trim the exceeding edge on both top and bottom sides of the panel, to make smooth arc shape.
●Equipped with the counting device, it makes the machine adjustment and debugging more unified and simple by the numberable scale, a mass of adjustment time can be saved.

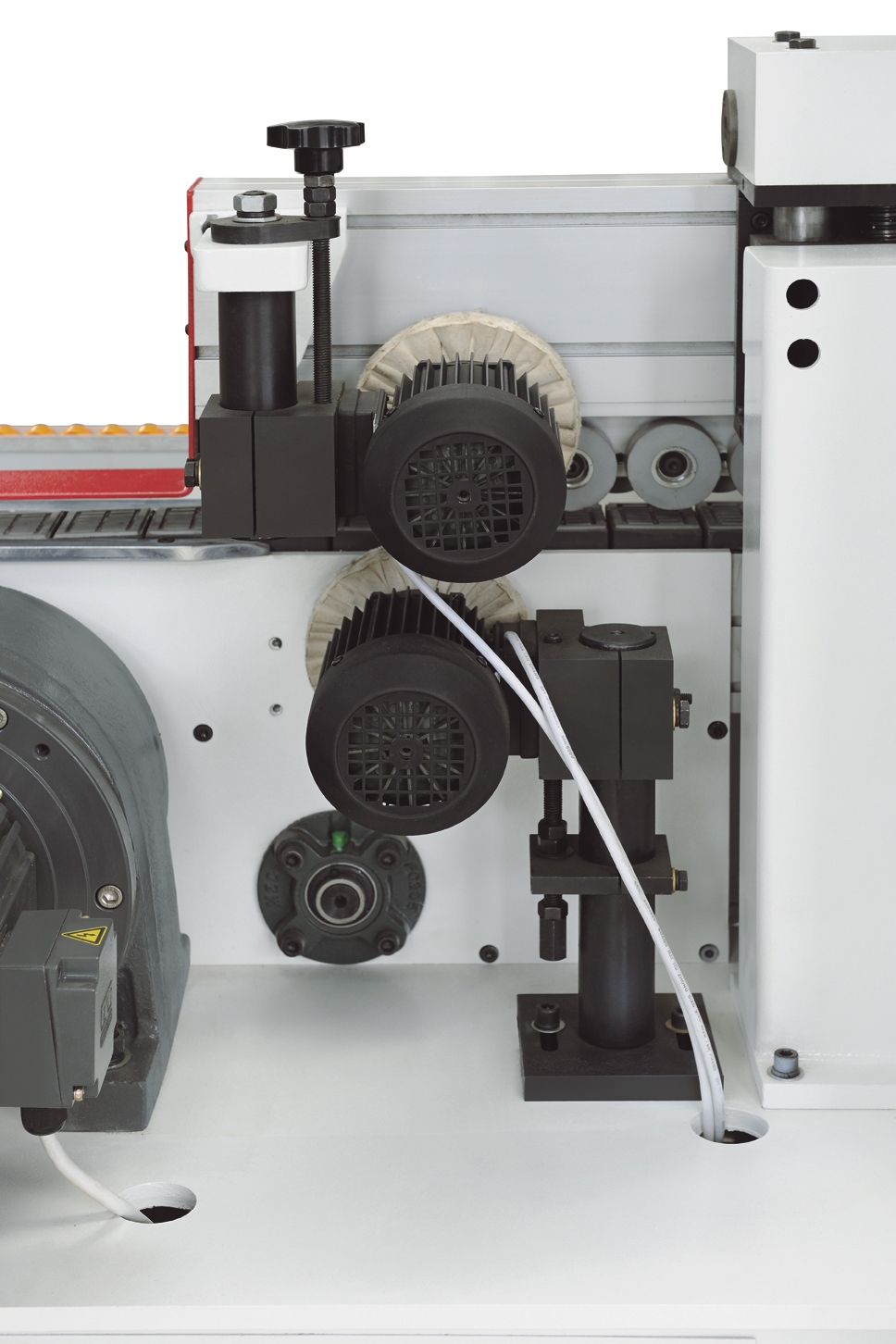

●Buffing unit is for cleaning of the edge, it's constituted by two independent motors and two cotton polishing wheels.
Specifications
---------------------------------------------------------------------------------------
---------------------------------------------------------------------------------------
Main Functions: Pre-Milling, Gluing, Edge Banding, End Cutting, Rough Trimming, Fine Trimming, Buffing
Armored Door Edge Banding Machine is an automatic edge banding machine with full functions, using advanced mechanical structure, which makes the machine have more stable performance and more convenient operation. With special structure, it can produce Armored Doors edge banding easily and perfectly.
●With high-vivid PLC touch screen for the display of machine control, it is easier and clearer for production operation.
●Pre-milling unit equipped with two high frequency motors and two milling cutters, ensures better preparation for panel edge gluing and banding by eliminating its faults caused by panel saw, and making it smooth and even.
●End cutting unit with two independent motors, for cutting the exceeding edge on the front and rear side of the panel.
●Rough trimming and Fine trimming unit, with two pairs of individual high frequency motors, trim the exceeding edge on both top and bottom sides of the panel, to make smooth arc shape.
●Equipped with the counting device, it makes the machine adjustment and debugging more unified and simple by the numberable scale, a mass of adjustment time can be saved.
●Buffing unit is for cleaning of the edge, it's constituted by two independent motors and two cotton polishing wheels.
Specifications
---------------------------------------------------------------------------------------
|
No.
|
Technical Specification
|
Armored Door Edge Banding Machine
|
|
1
|
Thickness of Edge
|
0.3-3.0mm
|
|
2
|
Width of Edge
|
15-80mm
|
|
3
|
Thickness of Panel
|
10-70mm
|
|
4
|
Min. Width of Panel
|
60mm
|
|
5
|
Min. Length of Panel
|
160mm
|
|
6
|
Panel Feeding Speed
|
12.6m/min
|
|
7
|
Total Power
|
12.72kw
|
|
8
|
Air Pressure
|
0.6Mpa
|
|
9
|
Machine Size
|
5130*1100*1600mm
|
|
10
|
Net Weight
|
2000kg
|
