Schnell 365
- Schnell 365
- PLC Touch Screen

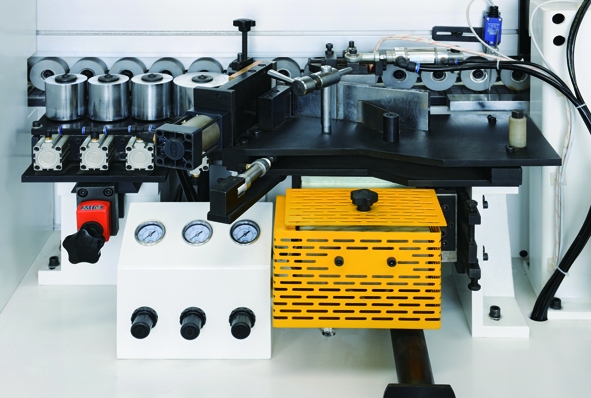

- Gluing Unit

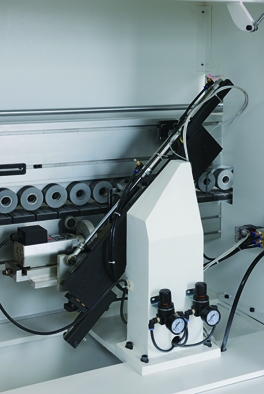

- End Cutting Unit
- Fine Trimming Unit
- Scraping Unit
- Buffing Unit
Product DetailsVideo ShowInquiry
Features
---------------------------------------------------------------------------------------
Main Functions: Gluing, Edge Banding, End Cutting, Fine Trimming, Scraping, Buffing
Schnell 365 is an automatic touch screen control edge banding machine with full functions, using advanced mechanical structure, which makes the machine have more stable performance and more convenient operation.
●With high-vivid PLC touch screen for the display of machine control, it is easier and clearer for production operation.

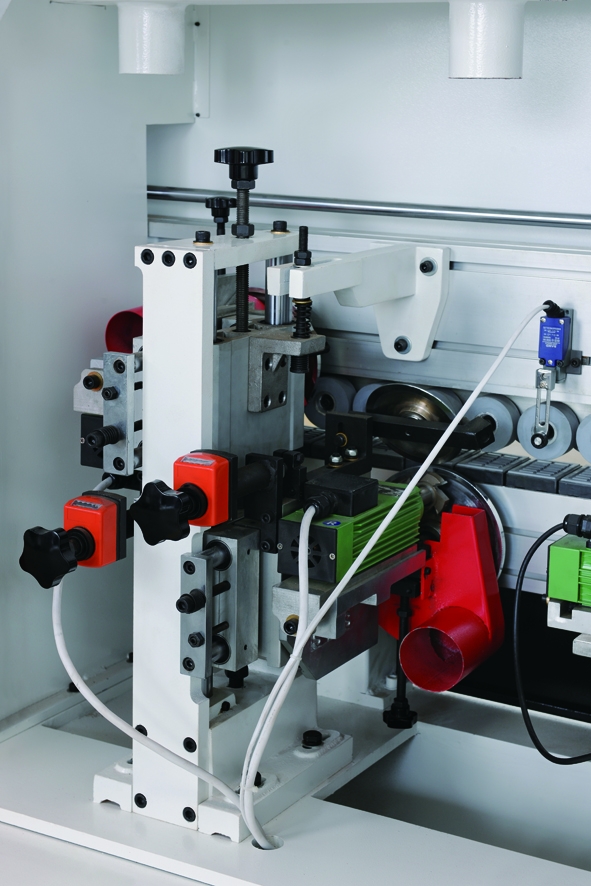

●Fine trimming unit, with two individual high frequency motors, trim the exceeding edge on both top and bottom sides of the panel, to make smooth arc shape.
●Equipped with the counting device, it makes the machine adjustment and debugging more unified and simple by the numberable scale, a mass of adjustment time can be saved.

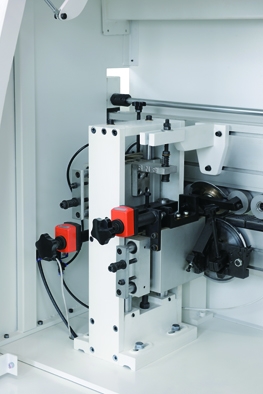

●Scraping unit, remove corrugation trail on the edges caused by trimming, make both sides of the panel smooth and tidy. With air blow function, it can prevent removed edge tapes from trapping on polishing wheels.
●Buffing unit is for cleaning of the edge, it's constituted by two independent motors and two cotton polishing wheels.
Specifications
---------------------------------------------------------------------------------------
---------------------------------------------------------------------------------------
Main Functions: Gluing, Edge Banding, End Cutting, Fine Trimming, Scraping, Buffing
Schnell 365 is an automatic touch screen control edge banding machine with full functions, using advanced mechanical structure, which makes the machine have more stable performance and more convenient operation.
●With high-vivid PLC touch screen for the display of machine control, it is easier and clearer for production operation.
●Fine trimming unit, with two individual high frequency motors, trim the exceeding edge on both top and bottom sides of the panel, to make smooth arc shape.
●Equipped with the counting device, it makes the machine adjustment and debugging more unified and simple by the numberable scale, a mass of adjustment time can be saved.
●Scraping unit, remove corrugation trail on the edges caused by trimming, make both sides of the panel smooth and tidy. With air blow function, it can prevent removed edge tapes from trapping on polishing wheels.
●Buffing unit is for cleaning of the edge, it's constituted by two independent motors and two cotton polishing wheels.
Specifications
---------------------------------------------------------------------------------------
No.
|
Technical Specification
|
Schnell 365
|
1
|
Thickness of Edge
|
0.4-3.0mm
|
2
|
Width of Edge
|
10-60mm
|
3
|
Thickness of Panel
|
10-55mm
|
4
|
Min. Width of Panel
|
80mm
|
5
|
Min. Length of Panel
|
120mm
|
6
|
Panel Feeding Speed
|
12-20m/min
|
7
|
Total Power
|
8.89kw
|
8
|
Air Pressure
|
0.6Mpa
|
9
|
Machine Size
|
4500*1100*1600mm
|
10
|
Net Weight
|
1500kg
|
