FZ-55A
- FZ-55A
- Gluing Unit
- End Cutting Unit
- Rough & Fine Trimming
- Scraping Unit
- Buffing Unit
Product DetailsVideo ShowInquiry
Features
---------------------------------------------------------------------------------------
Main Functions: Gluing, Edge Banding, End Cutting, Rough Trimming, Fine Trimming, Scraping, Buffing

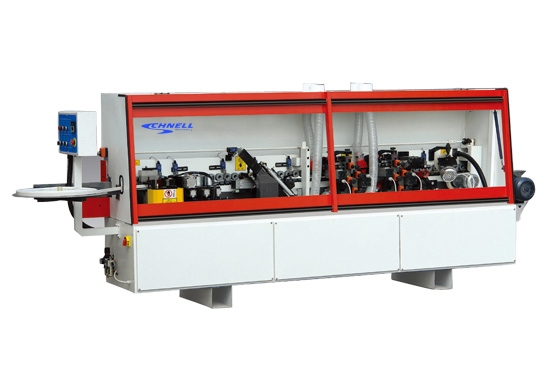

Schnell FZ-55A is an automatic edge banding machine with full functions, using advanced mechanical structure, which makes the machine have more stable performance and more convenient operation.

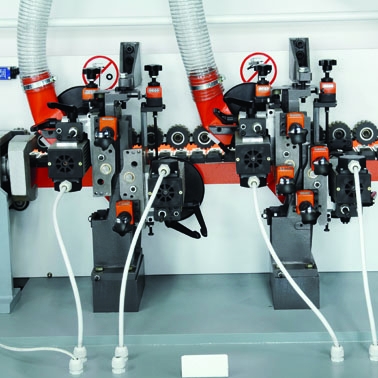

●Rough trimming and Fine trimming unit, with two pairs of individual high frequency motors, trim the exceeding edge on both top and bottom sides of the panel, to make smooth arc shape.
●Equipped with the counting device, it makes the machine adjustment and debugging more unified and simple by the numberable scale, a mass of adjustment time can be saved.
●Scraping unit, remove corrugation trail on the edges caused by trimming, make both sides of the panel smooth and tidy. With air blow function, it can prevent removed edge tapes from trapping on polishing wheels.

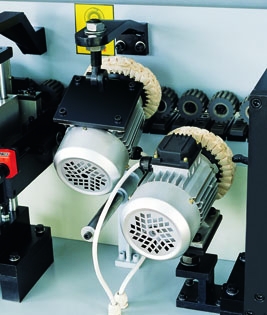

●Buffing unit is for cleaning of the edge, it's constituted by two independent motors and two cotton polishing wheels.
Specifications
---------------------------------------------------------------------------------------
---------------------------------------------------------------------------------------
Main Functions: Gluing, Edge Banding, End Cutting, Rough Trimming, Fine Trimming, Scraping, Buffing
Schnell FZ-55A is an automatic edge banding machine with full functions, using advanced mechanical structure, which makes the machine have more stable performance and more convenient operation.
●Rough trimming and Fine trimming unit, with two pairs of individual high frequency motors, trim the exceeding edge on both top and bottom sides of the panel, to make smooth arc shape.
●Equipped with the counting device, it makes the machine adjustment and debugging more unified and simple by the numberable scale, a mass of adjustment time can be saved.
●Scraping unit, remove corrugation trail on the edges caused by trimming, make both sides of the panel smooth and tidy. With air blow function, it can prevent removed edge tapes from trapping on polishing wheels.
●Buffing unit is for cleaning of the edge, it's constituted by two independent motors and two cotton polishing wheels.
Specifications
---------------------------------------------------------------------------------------
No.
|
Technical Specification
|
Schnell FZ-55A
|
1
|
Thickness of Edge
|
0.4-15.0mm
|
2
|
Width of Edge
|
15-60mm
|
3
|
Thickness of Panel
|
10-55mm
|
4
|
Min. Width of Panel
|
60mm
|
5
|
Min. Length of Panel
|
120mm
|
6
|
Panel Feeding Speed
|
12.6m/min
|
7
|
Total Power
|
8.06kw
|
8
|
Air Pressure
|
0.6Mpa
|
9
|
Machine Size
|
3900*950*1500mm
|
10
|
Net Weight
|
1380kg
|
