FZ-40C
- FZ-40C
- Gluing Unit

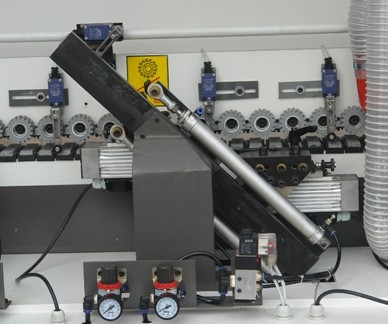

- End Cutting Unit
- Fine Trimming Unit
- Buffing Unit
Product DetailsVideo ShowInquiry
Features
---------------------------------------------------------------------------------------
Main Functions: Gluing, Edge Banding, End Cutting, Fine Trimming, Buffing

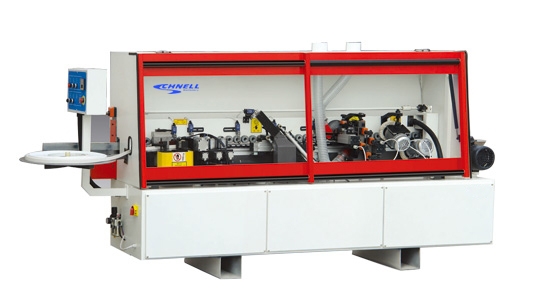

Schnell FZ-40C is an automatic edge banding machine with full functions, using advanced mechanical structure, which makes the machine have more stable performance and more convenient operation.
●Fine trimming unit, with two individual high frequency motors, trim the exceeding edge on both top and bottom sides of the panel, to make smooth arc shape.
●Equipped with the counting device, it makes the machine adjustment and debugging more unified and simple by the numberable scale, a mass of adjustment time can be saved.
●Buffing unit is for cleaning of the edge, it's constituted by two independent motors and two cotton polishing wheels.
Specifications
---------------------------------------------------------------------------------------
---------------------------------------------------------------------------------------
Main Functions: Gluing, Edge Banding, End Cutting, Fine Trimming, Buffing
Schnell FZ-40C is an automatic edge banding machine with full functions, using advanced mechanical structure, which makes the machine have more stable performance and more convenient operation.
●Fine trimming unit, with two individual high frequency motors, trim the exceeding edge on both top and bottom sides of the panel, to make smooth arc shape.
●Equipped with the counting device, it makes the machine adjustment and debugging more unified and simple by the numberable scale, a mass of adjustment time can be saved.
●Buffing unit is for cleaning of the edge, it's constituted by two independent motors and two cotton polishing wheels.
Specifications
---------------------------------------------------------------------------------------
|
No.
|
Technical Specification
|
Schnell FZ-40C
|
|
1
|
Thickness of Edge
|
0.4-15.0mm
|
|
2
|
Width of Edge
|
15-60mm
|
|
3
|
Thickness of Panel
|
10-55mm
|
|
4
|
Min. Width of Panel
|
60mm
|
|
5
|
Min. Length of Panel
|
120mm
|
|
6
|
Panel Feeding Speed
|
12.6m/min
|
|
7
|
Total Power
|
6.43kw
|
|
8
|
Air Pressure
|
0.6Mpa
|
|
9
|
Machine Size
|
3300*800*1500mm
|
|
10
|
Net Weight
|
1000kg
|
