Schnell 360
- Schnell 360
- Gluing Unit
- Fine Trimming Unit
- Buffing Unit
Product DetailsVideo ShowInquiry
Features
---------------------------------------------------------------------------------------
Main Functions: Gluing, Edge Banding, Fine Trimming, Buffing

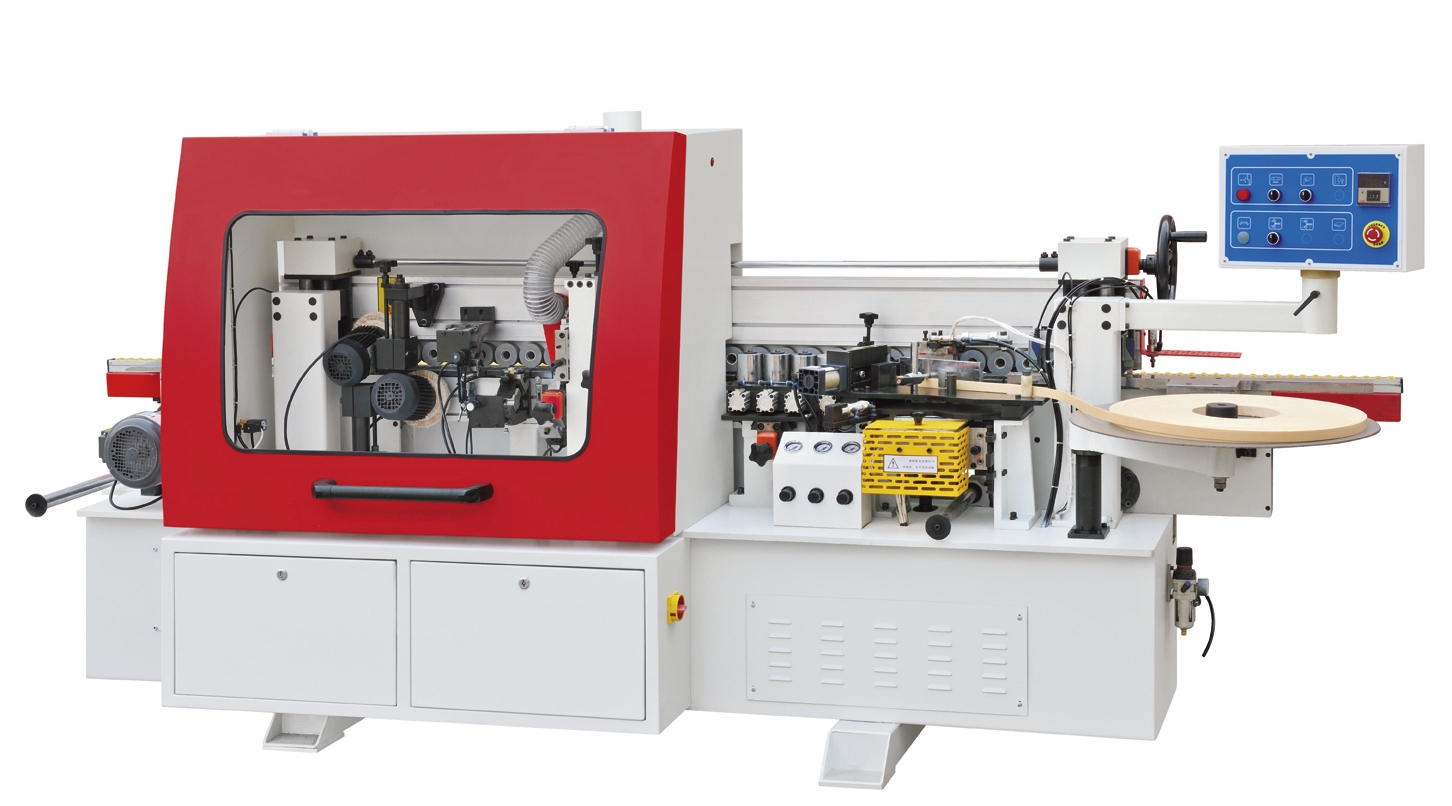

Schnell 360 is a semi-automatic edge banding machine with full functions, using advanced mechanical structure, which makes the machine have more stable performance and more convenient operation.

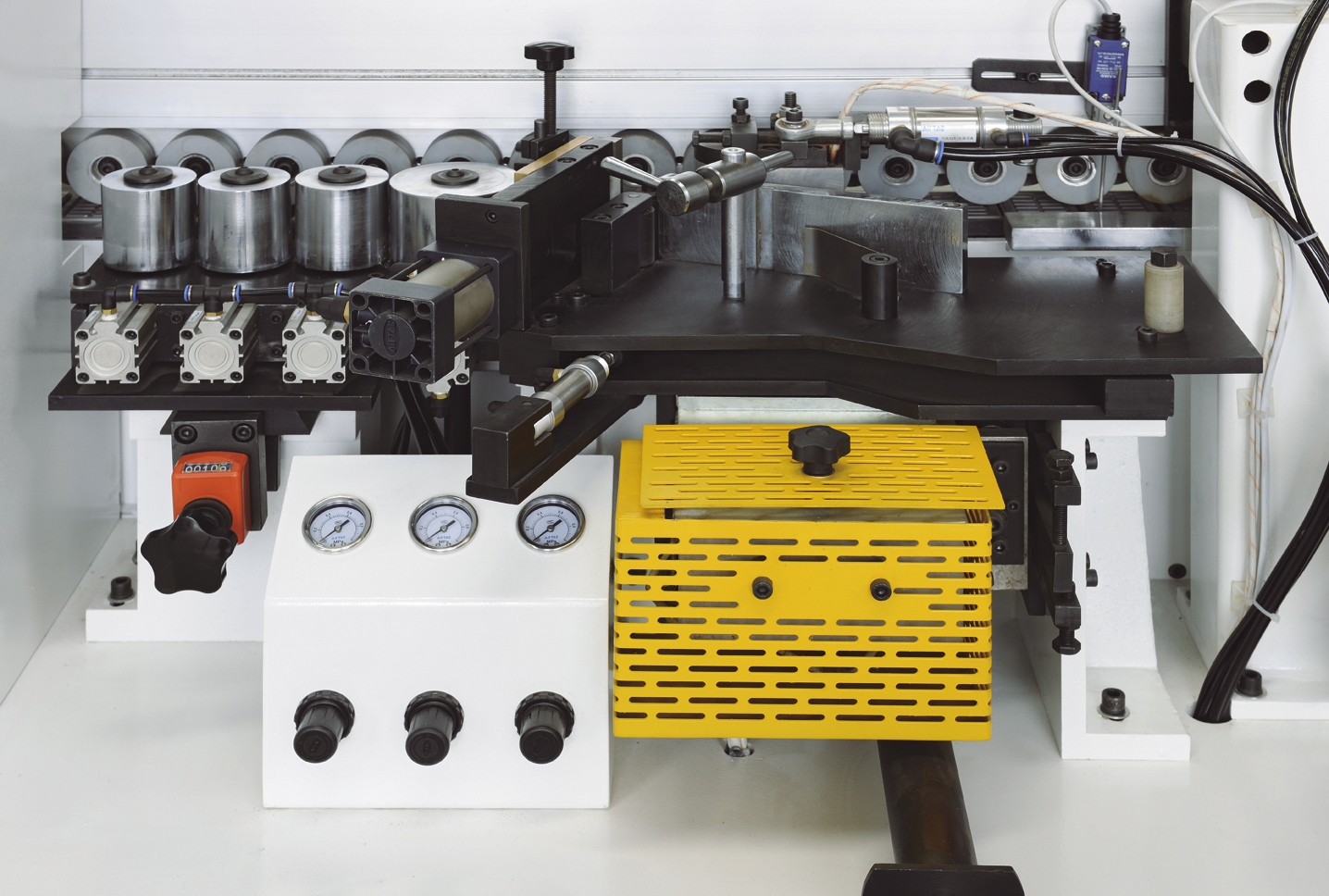

●Gluing & Edge Banding unit adopt lower glue tank, dual-screwy feeding unit, to make feeding glue conveniently and equally.
●Fine trimming unit, with two individual high frequency motors, trim the exceeding edge on both top and bottom sides of the panel, to make smooth arc shape.
●Equipped with the counting device, it makes the machine adjustment and debugging more unified and simple by the numberable scale, a mass of adjustment time can be saved.

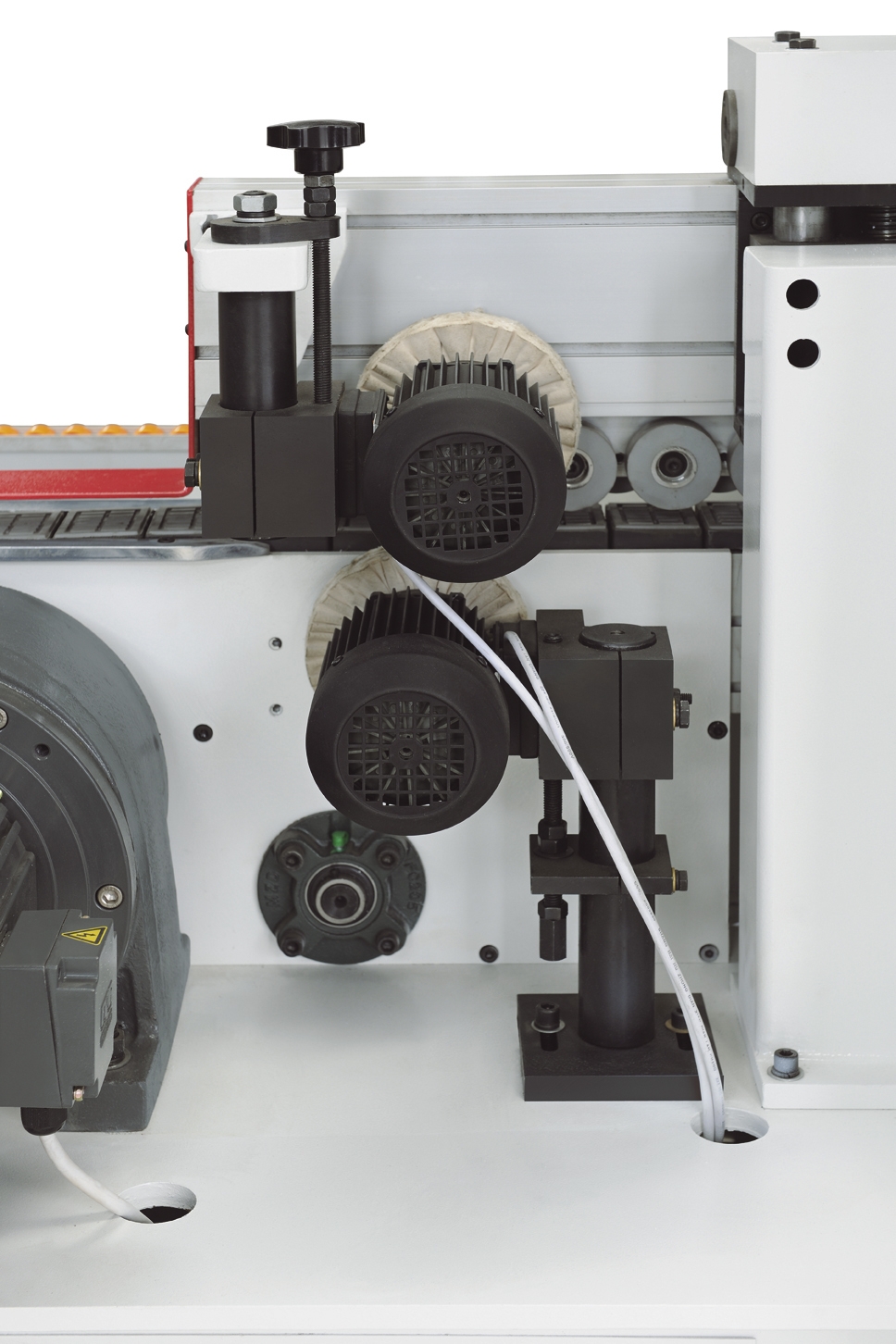

●Buffing unit is for cleaning of the edge, it's constituted by two independent motors and two cotton polishing wheels.
Specifications
---------------------------------------------------------------------------------------
---------------------------------------------------------------------------------------
Main Functions: Gluing, Edge Banding, Fine Trimming, Buffing
Schnell 360 is a semi-automatic edge banding machine with full functions, using advanced mechanical structure, which makes the machine have more stable performance and more convenient operation.
●Gluing & Edge Banding unit adopt lower glue tank, dual-screwy feeding unit, to make feeding glue conveniently and equally.
●Fine trimming unit, with two individual high frequency motors, trim the exceeding edge on both top and bottom sides of the panel, to make smooth arc shape.
●Equipped with the counting device, it makes the machine adjustment and debugging more unified and simple by the numberable scale, a mass of adjustment time can be saved.
●Buffing unit is for cleaning of the edge, it's constituted by two independent motors and two cotton polishing wheels.
Specifications
---------------------------------------------------------------------------------------
|
No.
|
Technical Specification
|
Schnell 360
|
|
1
|
Thickness of Edge
|
0.4-3.0mm
|
|
2
|
Width of Edge
|
10-60mm
|
|
3
|
Thickness of Panel
|
10-55mm
|
|
4
|
Min. Width of Panel
|
80mm
|
|
5
|
Min. Length of Panel
|
120mm
|
|
6
|
Panel Feeding Speed
|
12.6m/min
|
|
7
|
Total Power
|
5.03kw
|
|
8
|
Air Pressure
|
0.6Mpa
|
|
9
|
Machine Size
|
3000*1100*1400mm
|
|
10
|
Net Weight
|
800kg
|
