Semi-automatic Edge Banding Machine
Home > Products > Straight Edge Banding Equipment > Semi-automatic Edge Banding Machine >
Straight Edge Banding Equipment
Curved & Straight Edge Banding Equipment
Saw Cutting Equipment
Boring Equipment
Vacuum Membrane Press Equipment
Profiled Wrapping Equipment
Press Equipment
Engraving Equipment
Milling Equipment
Planer Equipment
Others
Door Lines Edge Banding Machine
- Semi-auto Door Lines

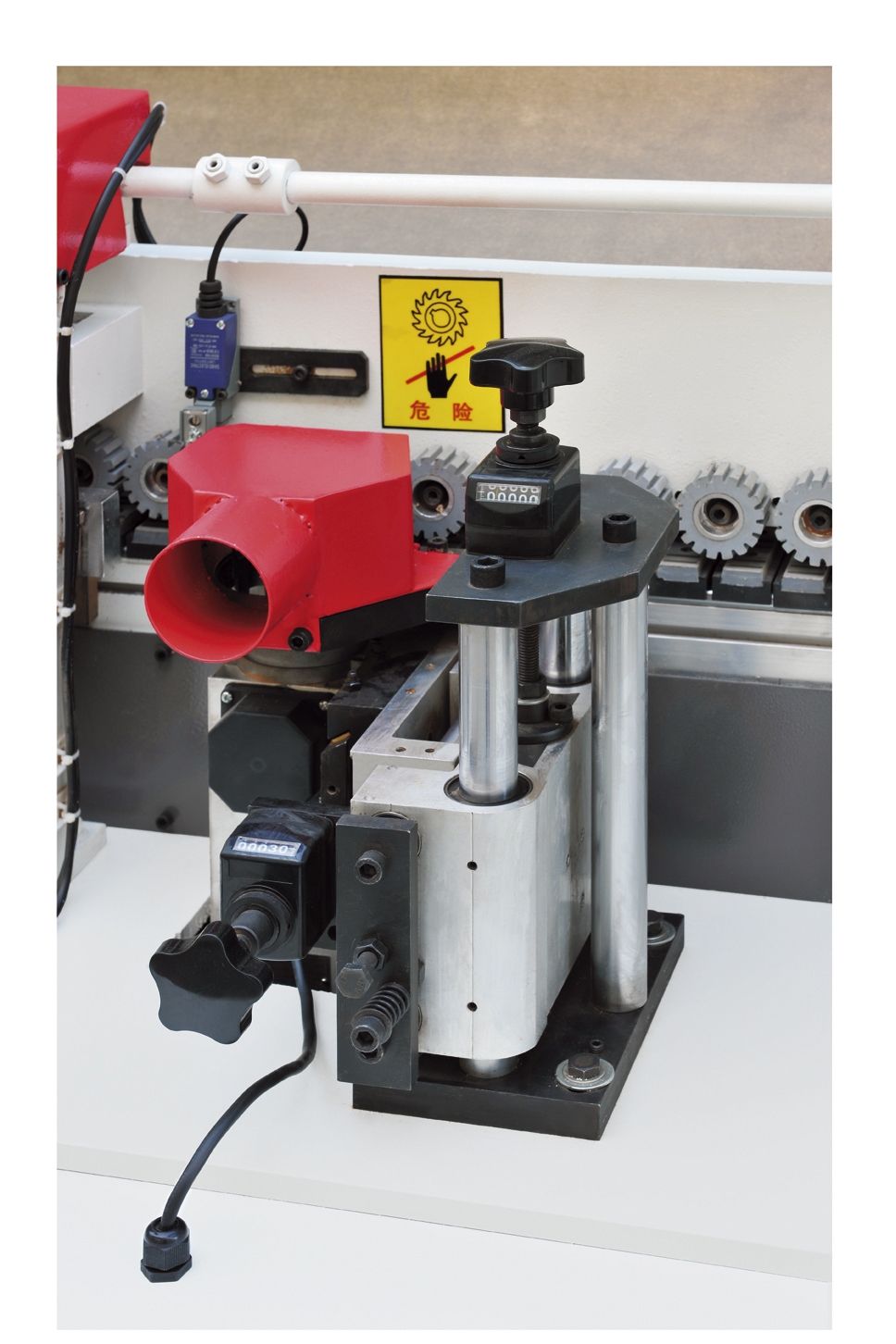

- T-shaped Milling Unit
- Gluing Unit
Product DetailsVideo ShowInquiry
Features
---------------------------------------------------------------------------------------
Main Functions: T-shaped Milling, Gluing, Edge Banding

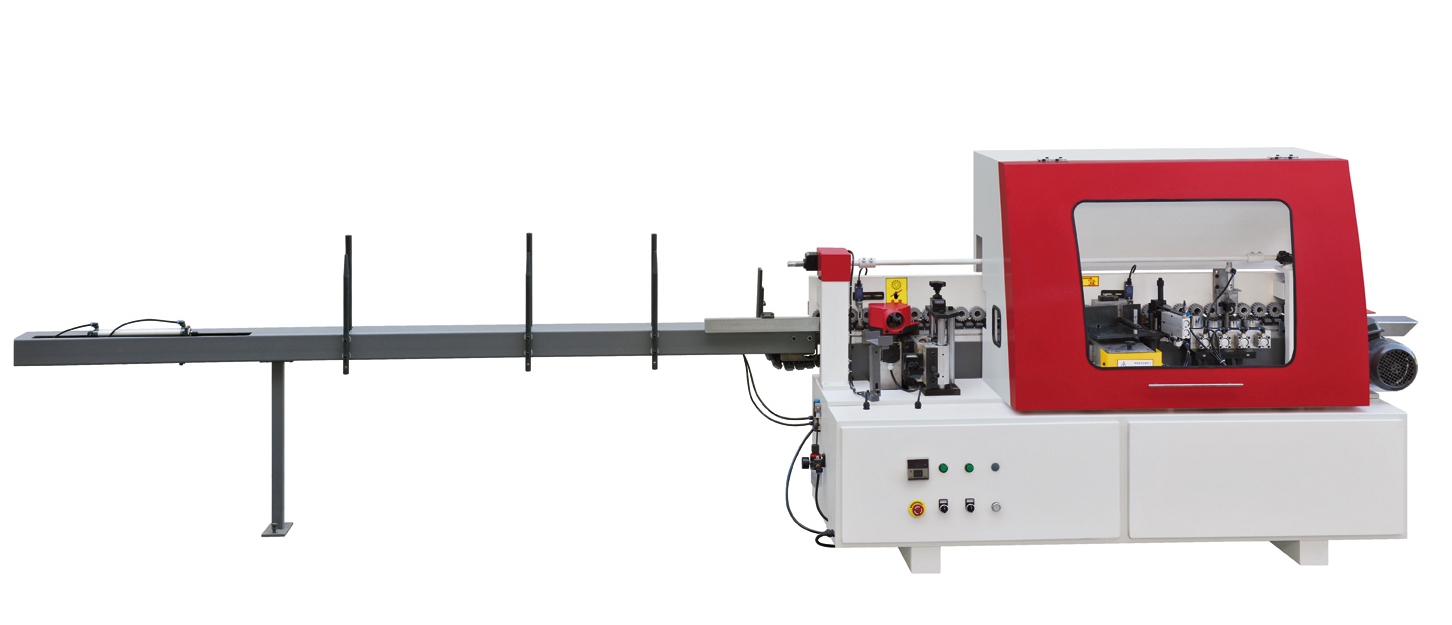

Door Lines Edge Banding Machine is a semi-automatic edge banding machine for door lines production, using advanced mechanical structure, which makes the machine have more stable performance and more convenient operation.
●Gluing & Edge Banding unit adopt lower glue tank, dual-screwy feeding unit, to make feeding glue conveniently and equally.
Specifications
---------------------------------------------------------------------------------------
---------------------------------------------------------------------------------------
Main Functions: T-shaped Milling, Gluing, Edge Banding
Door Lines Edge Banding Machine is a semi-automatic edge banding machine for door lines production, using advanced mechanical structure, which makes the machine have more stable performance and more convenient operation.
●Gluing & Edge Banding unit adopt lower glue tank, dual-screwy feeding unit, to make feeding glue conveniently and equally.
Specifications
---------------------------------------------------------------------------------------
|
No.
|
Technical Specification
|
Semi-auto Door Lines Edge Banding Machine
|
|
1
|
Min. Width of Panel
|
60mm
|
|
2
|
Min. Length of Panel
|
160mm
|
|
3
|
Panel Feeding Speed
|
11.6m/min
|
|
4
|
Total Power
|
5.03kw
|
|
5
|
Air Pressure
|
0.6Mpa
|
|
6
|
Machine Size
|
2800*700*1300mm
|
|
7
|
Net Weight
|
600kg
|
