WV2300A-2Z
Product DetailsVideo ShowInquiry
Features
---------------------------------------------------------------------------------------

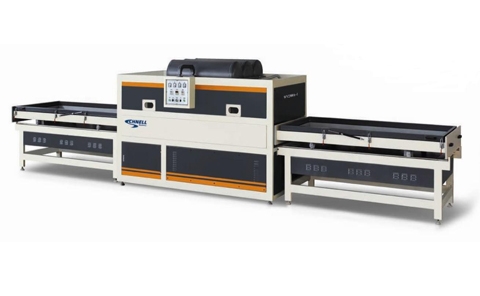

WV2300A-2Z is a double-plates automatic vacuum membrane press machine, compared with WV2300A-1(Z), it doubles the working efficiency. It can be used to cover PVC on the surface of the craft compound door, furniture, cabinet and sound box, or to cover veneer and thermal transfer membrane on single side of the door panel and furniture with the silicon membrane provided by our company.
●Stainless heating elements can heat evenly and improve working efficiency.
●Double layer thermal preservation and full sealing design can save energy.
●Special steel plate worktable can proof against high temperature and corrosion.
●Vacuum pump of high quality is efficient, stable and durable.
●Advanced digital technology can make sure of high level of automation and easy operation.
●All kinds of products can meet different clients’ needs.
Specifications
---------------------------------------------------------------------------------------
---------------------------------------------------------------------------------------
WV2300A-2Z is a double-plates automatic vacuum membrane press machine, compared with WV2300A-1(Z), it doubles the working efficiency. It can be used to cover PVC on the surface of the craft compound door, furniture, cabinet and sound box, or to cover veneer and thermal transfer membrane on single side of the door panel and furniture with the silicon membrane provided by our company.
●Stainless heating elements can heat evenly and improve working efficiency.
●Double layer thermal preservation and full sealing design can save energy.
●Special steel plate worktable can proof against high temperature and corrosion.
●Vacuum pump of high quality is efficient, stable and durable.
●Advanced digital technology can make sure of high level of automation and easy operation.
●All kinds of products can meet different clients’ needs.
Specifications
---------------------------------------------------------------------------------------
|
No.
|
Technical Specification
|
WV2300A-2Z
|
|
1
|
Machine Dimension
|
7900*1800*2000mm
|
|
2
|
Work Table Size
|
2300*1100mm
|
|
3
|
Total Power
|
25kw
|
|
4
|
Vacuum Press
|
-0.1Mpa
|
|
5
|
Weight
|
1600kg
|
