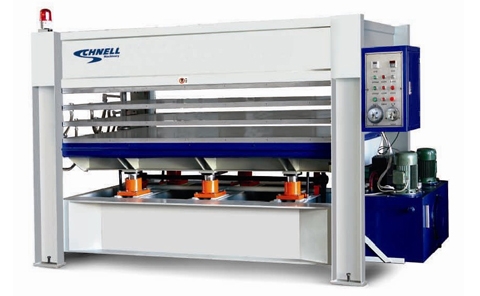

Product DetailsVideo ShowInquiry
Features
---------------------------------------------------------------------------------------
●For multi-purposes and wide application in wood-based panel industry.
●The automatic electric apparatus is easy and reliable in operation, and the automatic temperature & time control ensures the product quality.
●The hydraulic circuit is composed of integrated blocks and compact in structure, ensuring accurate and reliable action of the system.
●The steam system is designed as a "double-entering & double-exit” arrangement to ensure even temperature distribution in hot platens.
●Low motor power, quick power-free falling of hot platens, save power consumption and decrease production cost.
●All kinds of products can meet different clients’ needs.
Specifications
---------------------------------------------------------------------------------------
---------------------------------------------------------------------------------------
●For multi-purposes and wide application in wood-based panel industry.
●The automatic electric apparatus is easy and reliable in operation, and the automatic temperature & time control ensures the product quality.
●The hydraulic circuit is composed of integrated blocks and compact in structure, ensuring accurate and reliable action of the system.
●The steam system is designed as a "double-entering & double-exit” arrangement to ensure even temperature distribution in hot platens.
●Low motor power, quick power-free falling of hot platens, save power consumption and decrease production cost.
●All kinds of products can meet different clients’ needs.
Specifications
---------------------------------------------------------------------------------------
|
No.
|
Technical Specification
|
BY212 (3)
|
|
1
|
Normal pressure
|
120ton
|
|
2
|
Dimension of hot platen
|
2500*1300*40mm
|
|
3
|
Number of platens
|
3
|
|
4
|
Max. Opening
|
100mm
|
|
5
|
Number of cylinders
|
6
|
|
6
|
Heating medium
|
Steam or thermal oil
|
|
7
|
Installation power
|
5.5kw
|
|
8
|
Machine dimension (Approx)
|
3600*1700*2100mm
|
|
9
|
Net Weight (Approx)
|
8000kg
|
