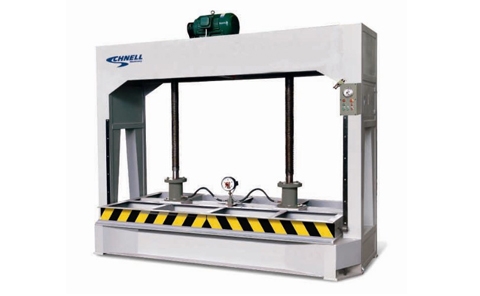

MYJ50T
Product DetailsVideo ShowInquiry
Features
---------------------------------------------------------------------------------------
●For multi-purposes and wide application in wood-based panel industry, can be used for pre-pressing process of making plywood, decorative board and so on.
●The whole structure is designed and manufactured elaborately based on advanced international experience and new technology.
●The electric system and hydraulic system have been examined precisely, and the free-beam will not fall by its own gravity, with results assuring excellent quality.
●The cylinders are made of super-hard metal (plunger hardness above HRC55), and sealed with low-resistance stepped gaskets, giving no oil-leakage, long service life and low maintenance cost.
●All kinds of products can meet different clients’ needs.
Specifications
---------------------------------------------------------------------------------------
---------------------------------------------------------------------------------------
●For multi-purposes and wide application in wood-based panel industry, can be used for pre-pressing process of making plywood, decorative board and so on.
●The whole structure is designed and manufactured elaborately based on advanced international experience and new technology.
●The electric system and hydraulic system have been examined precisely, and the free-beam will not fall by its own gravity, with results assuring excellent quality.
●The cylinders are made of super-hard metal (plunger hardness above HRC55), and sealed with low-resistance stepped gaskets, giving no oil-leakage, long service life and low maintenance cost.
●All kinds of products can meet different clients’ needs.
Specifications
---------------------------------------------------------------------------------------
|
No.
|
Technical Specification
|
MYJ50T
|
|
1
|
Max. Pressure
|
50ton
|
|
2
|
Dimension of the Platen
|
1250mm*2500mm
|
|
3
|
Working Speed
|
180mm/Min
|
|
4
|
Max. Working Height
|
1000mm
|
|
5
|
Total Power
|
5.5kw
|
|
6
|
Machine Size
|
2860*1300*2350mm
|
|
7
|
Net Weight
|
2650kg
|
