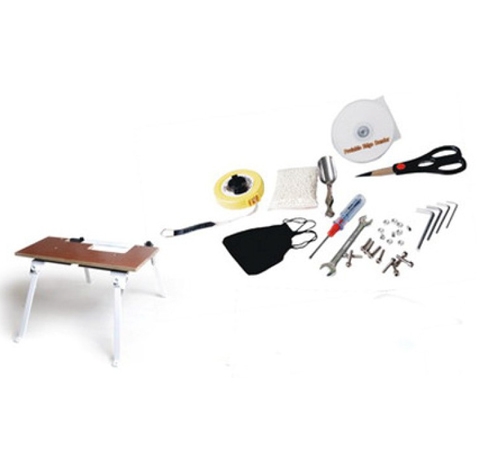

- Normal Accessories

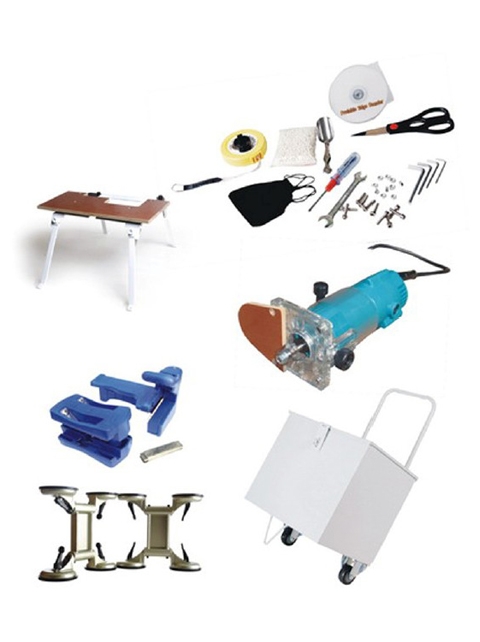

- Full Accessories

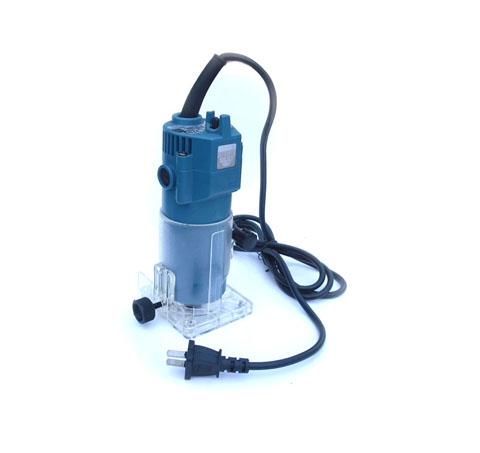

- Electric Edge Trimmer

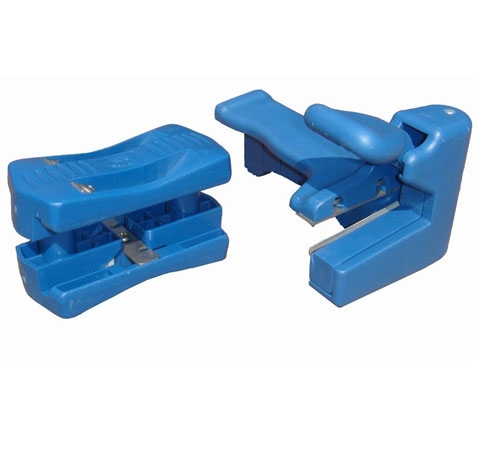

- End & Edge Trimmer

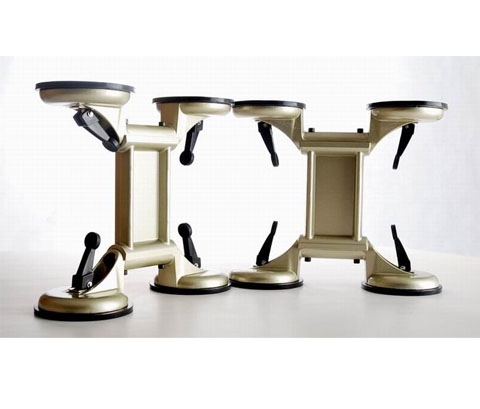

- Fixing Sucker

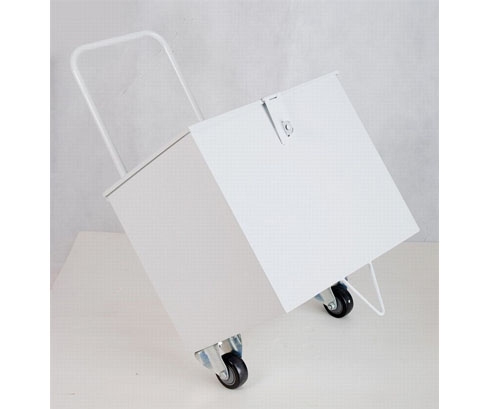

- Metal Packing Trolley
Product DetailsVideo ShowInquiry

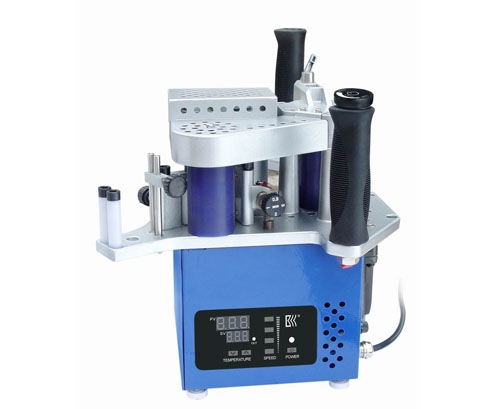

Features
---------------------------------------------------------------------------------------
●Support all types of banding materials, such as PVC, ABS, melamine, veneer and so on.
●Suitable for all frame shapes, allows banding for a wide range of length and width, and for both straight line and curved edge.
●New glue extraction system ensures gluing evenly on edge tapes.
●Multi-functional, larger glue tank with little increase in machine weight.
●Temperature control device can control heating to reach set temperature automatically, with short warming up time, just 5 to 7 minutes.
●Longer service life due to improvements on the components.
●Speed control device can adjust the banding speed to work at your pace.
Specifications
---------------------------------------------------------------------------------------
---------------------------------------------------------------------------------------
●Support all types of banding materials, such as PVC, ABS, melamine, veneer and so on.
●Suitable for all frame shapes, allows banding for a wide range of length and width, and for both straight line and curved edge.
●New glue extraction system ensures gluing evenly on edge tapes.
●Multi-functional, larger glue tank with little increase in machine weight.
●Temperature control device can control heating to reach set temperature automatically, with short warming up time, just 5 to 7 minutes.
●Longer service life due to improvements on the components.
●Speed control device can adjust the banding speed to work at your pace.
Specifications
---------------------------------------------------------------------------------------
|
No.
|
Technical Specification
|
10 Ver.
|
|
1
|
Thickness of Edge
|
0.3-3mm
|
|
2
|
Width of Edge
|
10-60mm
|
|
3
|
Feeding Speed
|
2-6m/Min
|
|
4
|
Glue Volume
|
320ml
|
|
5
|
Operating Temperature
|
120-180°C
|
|
6
|
Pre-heating Time
|
5-7Min
|
|
7
|
Motor Power
|
20W
|
|
8
|
Total Power
|
640W
|
|
9
|
Net Weight
|
9.2kg
|
|
10
|
Gross Weight (single unit in carton)
|
16.0kg
|
|
11
|
Gross Weight (full set in metal box)
|
39.5kg
|
|
12
|
Machine Size
|
300*335*395mm
|
|
13
|
Machine Size (single unit in carton)
|
395*365*335mm
|
|
14
|
Machine Size (full set in metal box)
|
460*430*510mm
|
