T90

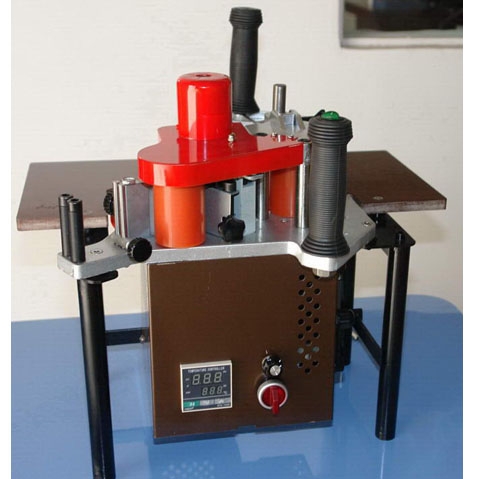

- T90

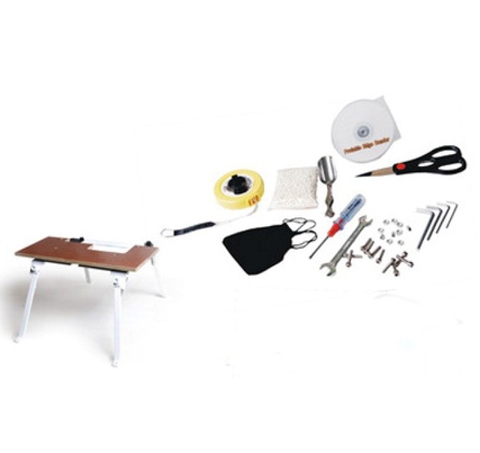

- Normal Accessories

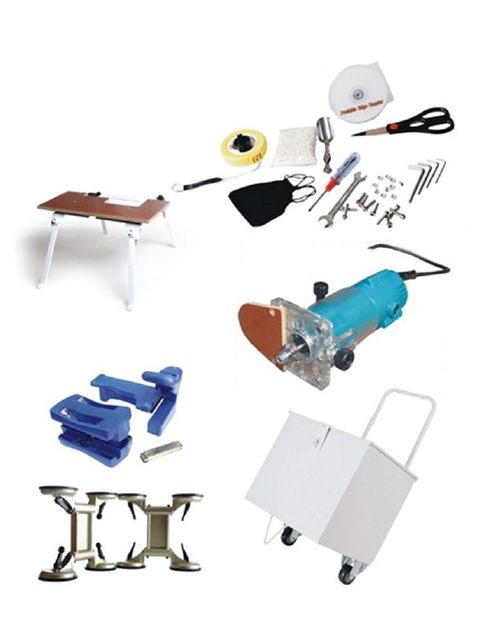

- Full Accessories

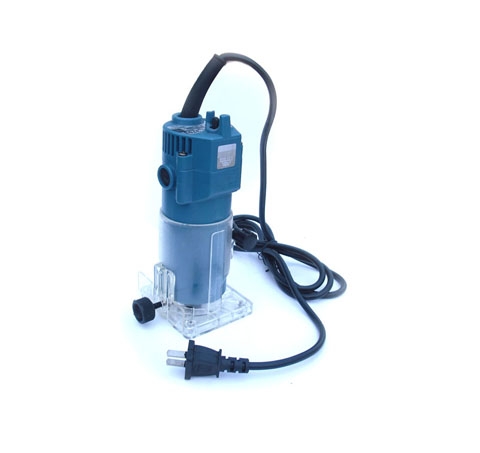

- Electric Edge Trimmer

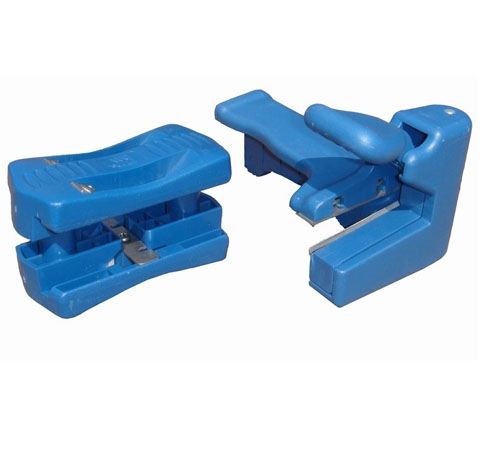

- End & Edge Trimmer

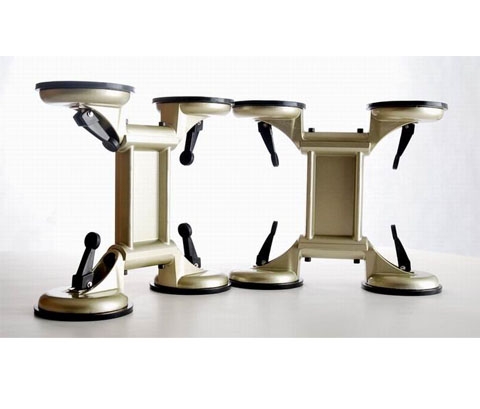

- Fixing Sucker

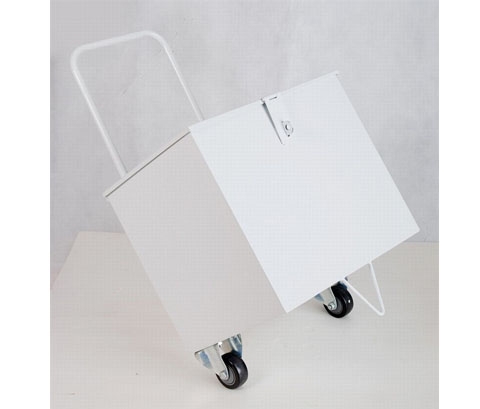

- Metal Packing Trolley
Product DetailsVideo ShowInquiry
Features
---------------------------------------------------------------------------------------
●Support all types of banding materials, such as PVC, ABS, melamine, veneer and so on.
●Suitable for all frame shapes, allows banding for a wide range of length and width, and for both straight line and curved edge.
●Special design for glue system, adding structural stability, and prolong service life, also with coating uniformity can prevent glue leaking.
●Temperature control device can control heating to reach set temperature automatically, with short warming up time, just 5 to 7 minutes.
●Numerical temperature control can adjust heating temperature clearly.
●Speed control device can adjust the banding speed to work at your pace.
Specifications
---------------------------------------------------------------------------------------
---------------------------------------------------------------------------------------
●Support all types of banding materials, such as PVC, ABS, melamine, veneer and so on.
●Suitable for all frame shapes, allows banding for a wide range of length and width, and for both straight line and curved edge.
●Special design for glue system, adding structural stability, and prolong service life, also with coating uniformity can prevent glue leaking.
●Temperature control device can control heating to reach set temperature automatically, with short warming up time, just 5 to 7 minutes.
●Numerical temperature control can adjust heating temperature clearly.
●Speed control device can adjust the banding speed to work at your pace.
Specifications
---------------------------------------------------------------------------------------
No.
|
Technical Specification
|
T90
|
1
|
Thickness of Edge
|
0.3-3mm
|
2
|
Width of Edge
|
10-45mm
|
3
|
Feeding Speed
|
0.5-5m/Min
|
4
|
Glue Volume
|
200ml
|
5
|
Operating Temperature
|
120-180°C
|
6
|
Pre-heating Time
|
5-7Min
|
7
|
Motor Power
|
15W
|
8
|
Total Power
|
765W
|
9
|
Net Weight
|
9.0kg
|
10
|
Gross Weight (single unit in carton)
|
15.0kg
|
11
|
Gross Weight (full set in metal box)
|
34.0kg
|
12
|
Machine Size
|
300*330*380mm
|
13
|
Machine Size (single unit in carton)
|
330*410*450mm
|
14
|
Machine Size (full set in metal box)
|
430*460*510mm
|
