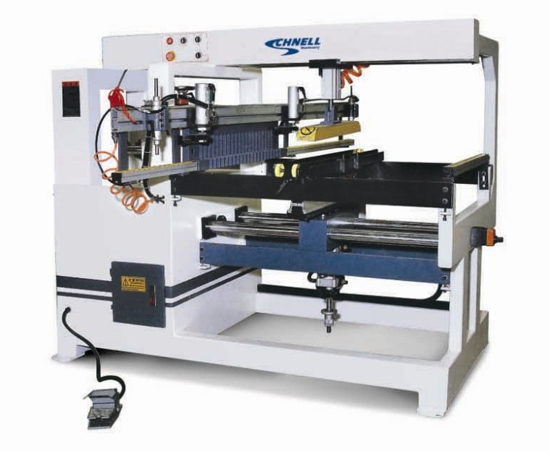

ZB-212
Product DetailsVideo ShowInquiry
Features
---------------------------------------------------------------------------------------
●The driller covers a large working scope, and all the drill axes can be joined fast, it is quick and convenient.
●Using imported original driller, electrical motor and linear guide, it is durable for using.
●Selection of high quality steel parts, it is never deformed by high-strength heat treatment.
●Equipped with digital calculator to measure the sizes which enhance the working efficiency.
●Using brand-named touch screen and PLC control system (optional), it is powerful and with lower failure rate.
●The drilling depth and distance are controlled by photoelectric switch (optional) and linear guide, it can locate quickly and accurately.
Specifications
---------------------------------------------------------------------------------------
---------------------------------------------------------------------------------------
●The driller covers a large working scope, and all the drill axes can be joined fast, it is quick and convenient.
●Using imported original driller, electrical motor and linear guide, it is durable for using.
●Selection of high quality steel parts, it is never deformed by high-strength heat treatment.
●Equipped with digital calculator to measure the sizes which enhance the working efficiency.
●Using brand-named touch screen and PLC control system (optional), it is powerful and with lower failure rate.
●The drilling depth and distance are controlled by photoelectric switch (optional) and linear guide, it can locate quickly and accurately.
Specifications
---------------------------------------------------------------------------------------
|
No.
|
Technical Specification
|
ZB-212
|
|
1
|
Max. drill hole diameter
|
φ35mm (single drill), φ13mm (multi-drills)
|
|
2
|
Max. drill hole depth
|
60mm
|
|
3
|
Max. center distance between holes
|
Lmax*Bmax=870mm*640mm
|
|
4
|
Min. center distance between holes
|
Lmin*Bmin=130mm*32mm
|
|
5
|
Number of drill spindle
|
2
|
|
6
|
Number of drill axis
|
21*2
|
|
7
|
Assemblage diameter of drill bit shaft
|
φ10mm
|
|
8
|
Total Power
|
3kw
|
|
9
|
Spindles speed
|
2840rpm
|
|
10
|
Machine Size
|
2400*1100*1450mm
|
|
11
|
Net Weight
|
600kg
|
