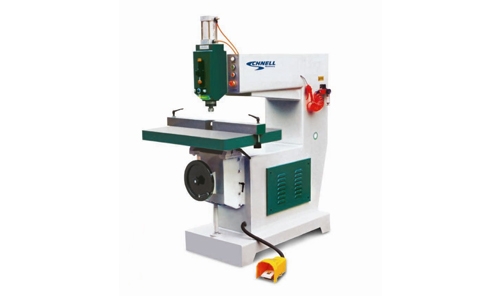

MX506
Product DetailsVideo ShowInquiry
Specifications
---------------------------------------------------------------------------------------
---------------------------------------------------------------------------------------
|
No.
|
Technical Specification
|
MX506 (single-speed)
|
MX506 (double-speeds)
|
|
1
|
Max. height of milling
|
130mm
|
130mm
|
|
2
|
Dimension of working table
|
710*510mm
|
710*510mm
|
|
3
|
Diameter of cutter handle
|
12.7mm
|
12.7mm
|
|
4
|
Distance between main spindle and vertical pole
|
800mm
|
800mm
|
|
5
|
Max. stroke of main spindle
|
65mm
|
65mm
|
|
6
|
Main spindle rotating speed
|
18000rpm
|
10000/20000rpm
|
|
7
|
Installation power
|
3.0kw
|
2.4/3.0kw
|
|
8
|
Machine Size
|
1460*710*1340mm
|
1460*710*1340mm
|
|
9
|
Weight
|
300kg
|
300kg
|
