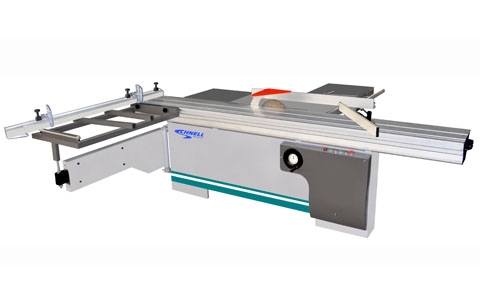

MJ61-28TA (30TA, 32TA)
Product DetailsVideo ShowInquiry
Features
---------------------------------------------------------------------------------------
●The main and scoring saw blades angle can be adjustable from 0-45°, the tilting angle of blades are displayed directly by precision inclinometer.
●Apply to processing all kinds of fiberboards, particle boards, wood-based panels, PVC panels, organic glass plates, solid wood and others with similar structure and hardness.
●The sliding table is made of high-strength extruded aluminum alloy, with oxidation treatment on the surface, it’s beautiful and hardwearing, and its multi-cavity structure will not easily deformed.
●Movable table guide track is plating chromium steel bars or balls structure, accurate and durable.
Specifications
---------------------------------------------------------------------------------------
---------------------------------------------------------------------------------------
●The main and scoring saw blades angle can be adjustable from 0-45°, the tilting angle of blades are displayed directly by precision inclinometer.
●Apply to processing all kinds of fiberboards, particle boards, wood-based panels, PVC panels, organic glass plates, solid wood and others with similar structure and hardness.
●The sliding table is made of high-strength extruded aluminum alloy, with oxidation treatment on the surface, it’s beautiful and hardwearing, and its multi-cavity structure will not easily deformed.
●Movable table guide track is plating chromium steel bars or balls structure, accurate and durable.
Specifications
---------------------------------------------------------------------------------------
|
No.
|
Technical Specification
|
MJ61-28TA
|
MJ61-30TA
|
MJ61-32TA
|
|
1
|
Dimension of Sliding Table
|
2800*360mm
|
3000*380mm
|
3200*400mm
|
|
2
|
Gross cut capacity
|
2800mm
|
3000mm
|
3200mm
|
|
3
|
Width of cut between saw blade and rip fence
|
1250mm
|
1250mm
|
1250mm
|
|
4
|
Main saw blade diameter
|
φ300mm (φ250-φ300mm)
|
φ300mm (φ250-φ300mm)
|
φ300mm (φ250-φ300mm)
|
|
5
|
Height of cut (at φ300mm)
|
80mm
|
80mm
|
80mm
|
|
6
|
Main saw blade angle
|
0-45°
|
0-45°
|
0-45°
|
|
7
|
45° Height of cut (at φ300mm)
|
55mm
|
55mm
|
55mm
|
|
8
|
Main spindle diameter
|
φ30mm
|
φ30mm
|
φ30mm
|
|
9
|
Speed of main saw blade
|
4500/6000rpm
|
4500/6000rpm
|
4500/6000rpm
|
|
10
|
Auxiliary saw blade diameter
|
φ120mm
|
φ120mm
|
φ120mm
|
|
11
|
Auxiliary spindle diameter
|
φ20mm
|
φ20mm
|
φ20mm
|
|
12
|
Speed of auxiliary saw blade
|
8000rpm
|
8000rpm
|
8000rpm
|
|
13
|
Main saw motor power
|
4.0kw
|
4.0kw
|
4.0kw
|
|
14
|
Auxiliary saw motor power
|
0.75kw
|
0.75kw
|
0.75kw
|
|
15
|
Machine Size
|
2850*3150*900mm
|
3050*3150*900mm
|
3250*3150*900mm
|
|
16
|
Net Weight
|
780kg
|
860kg
|
930kg
|
